Tolquane Web: the user guide

Tolquane Web is a page for the flows in one directory: a canvas of the blocks, the Python beside it, runs with live per-node counts, a history, schedules and the AI builder. It runs on your machine, and the flows it writes are ordinary files.

The file is the artifact and the canvas is a view of it. Every flow is a flow.py in the house style, with build(source=None) and main(), so anything made here runs with python flow.py on any machine that has pip install tolquane and nothing else.

Install and start

pip install "tolquane[web]"
cd ~/flows
tolquane web

That starts a server on 127.0.0.1:8765, opens a browser at it, and takes the current directory as the workspace: the directory whose .py files are the flows, and the working directory every run starts in. --workspace DIR picks another one, --port a different port, and --no-browser leaves the browser alone. The workspace, host and port you save on the Settings page are what the next tolquane web starts with when no flag says otherwise.

The server has no login because it is on loopback, where only this machine can reach it. To put it on a shared machine, bind wider and set a token:

tolquane web --host 0.0.0.0 --token "$(python -c 'import secrets; print(secrets.token_urlsafe(24))')"

Tolquane Web refuses --host anything but loopback without --token: anyone who can reach the page can run code as you. Paste the token into the page once, where it asks for it; the browser keeps it under localStorage['tolquane.token'] and sends it with every request from then on. (Setting it by hand is the same thing: localStorage.setItem('tolquane.token', '…') in the developer console.) See Security for what the token does and does not cover.

A token is one secret for one person. Accounts are the other way in: the first user turns sign-in on for everybody, and a server started with --token can make its first administrator from the login page. See Users and sign-in.

tolquane web --check starts the server, asks /api/health, and stops. That is the line for CI.

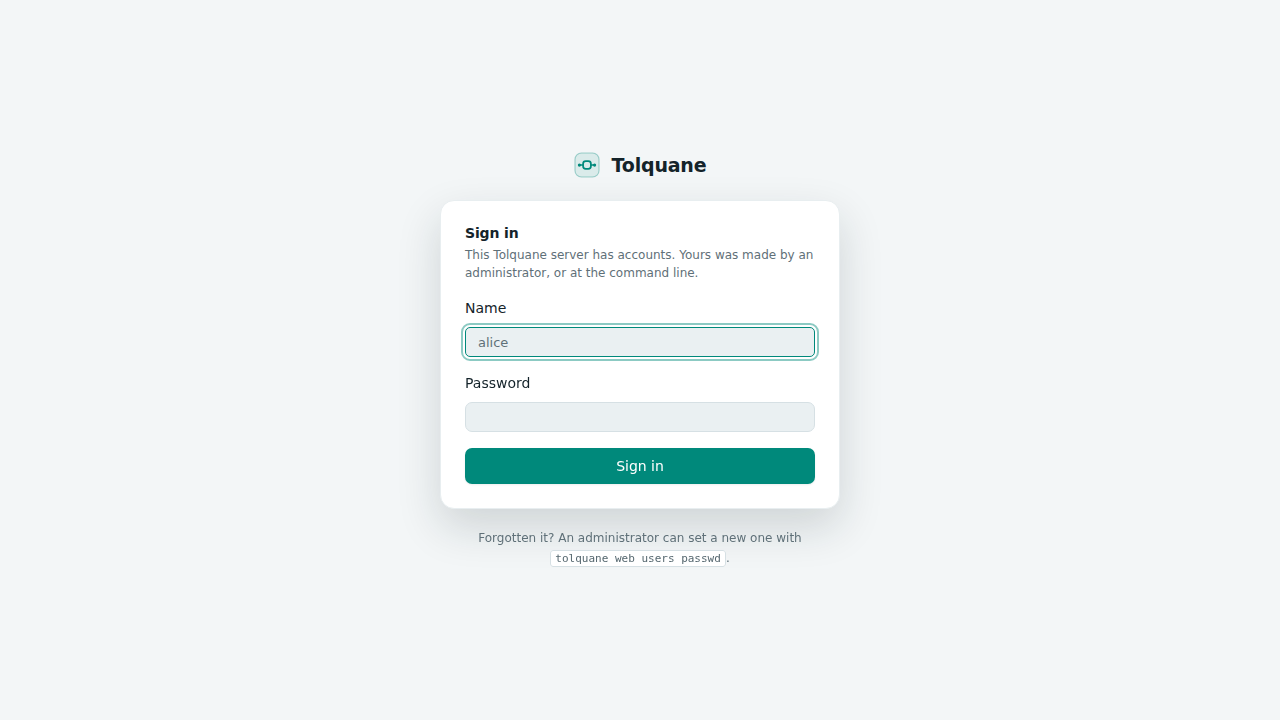

Users and sign-in

Whether you sign in depends on how the server was started and on whether anybody has an account yet. Three cases:

• A local server with no users. Loopback, no --token, nobody added: no login. Every request is an implicit administrator called local, and that is the name the runs and the schedules record. It is the default, and it is what 1.2 did.
• A server with users. As soon as one account exists, everybody signs in, on loopback too. The account menu at the bottom of the sidebar says who you are.
• A server started with --token and no users. The token is the only key, exactly as before, and the login page offers Create the first administrator. The token keeps working afterwards as an administrator's API token, for scripts and for setup.

The first user is the switch. Make one from the login page of a --token server, or at the command line, which needs no server running:

tolquane web users add alice --admin      # asks for the password, twice
tolquane web users list
tolquane web users passwd alice
tolquane web users disable bob
tolquane web users enable bob

These read and write the database tolquane web uses (~/.tolquane/web.db, or under TOLQUANE_HOME), so they work while the server is down and they are the way back in when nobody can sign in. --password gives the password on the line instead of at a prompt. A duplicate name, a password under eight characters, an unknown user, or disabling the last administrator each print one line and stop.

Roles. An administrator can do everything. A member does the work — flows, runs, schedules, the AI builder, history — and nothing else: no Users page, no setting but the theme, no word on whether an API key is stored or what address the server is on, the names of the workspace environment variables but not their values, and no git init. A route a role does not have answers 403.

Accounts. A user made in the app is given a temporary password, shown once, and is asked to choose their own at the first sign-in; a user made at the command line keeps the password whoever typed it chose. The account menu holds Change password, API tokens… and Sign out. Names are lower case, two to thirty-two characters of letters, digits, _, . and -; passwords are at least eight characters. A session lasts thirty days, and using it puts that off again. Disabling a user ends their sessions at once. There is always one administrator who can sign in: the last one cannot be deleted, disabled or made a member.

API tokens, for scripts. A personal token is yours, carries your role, is shown once, and lasts until you delete it. Make one from the account menu, then:

curl -H "Authorization: Bearer $TOLQUANE_TOKEN" http://127.0.0.1:8765/api/runs

Every route takes it that way, and as ?token= on the run socket and on a download link, neither of which can carry a header.

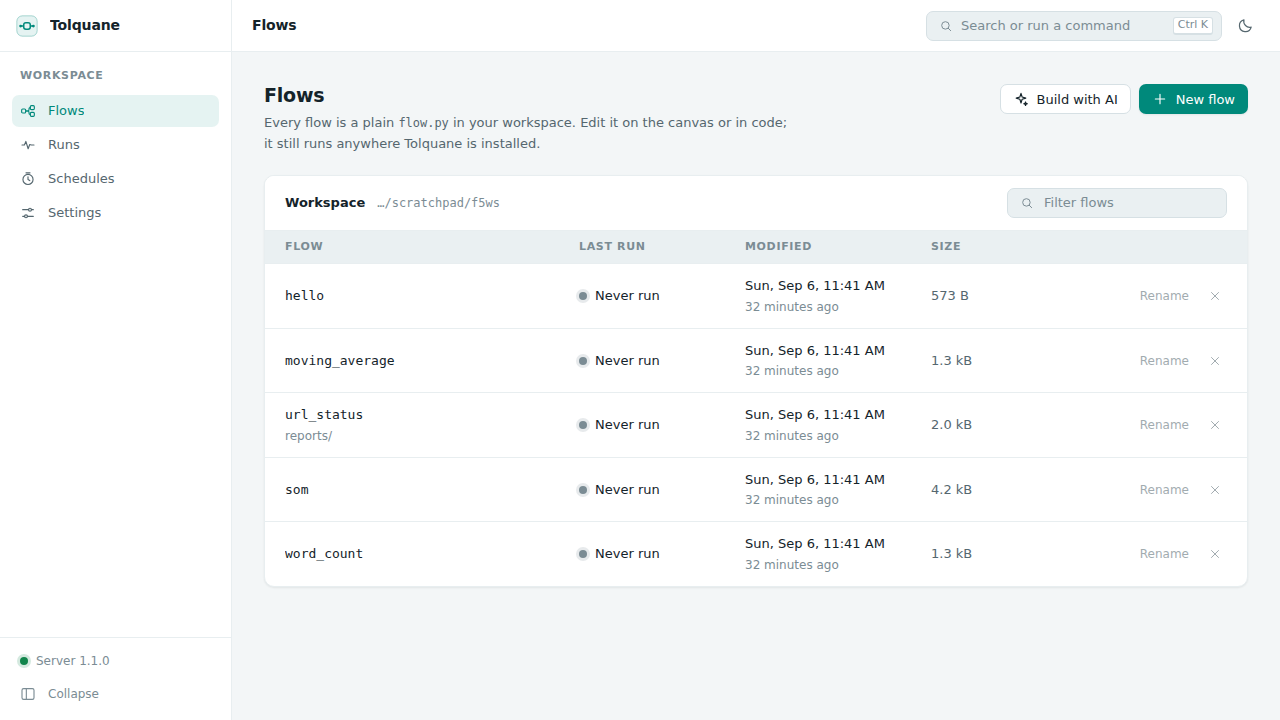

Flows

The first screen lists every .py file in the workspace, when it changed, how big it is and how it last ran. Hidden directories, __pycache__, node_modules, virtualenvs and Tolquane Web's own .tolquane-web/ are left out; so is a symlink pointing out of the workspace.

New flow writes a small template and opens it. Build with AI opens the same editor with the AI panel in front, for describing what you want instead. Clicking a row opens it; Rename moves the file and its layout sidecar together, and the cross deletes both.

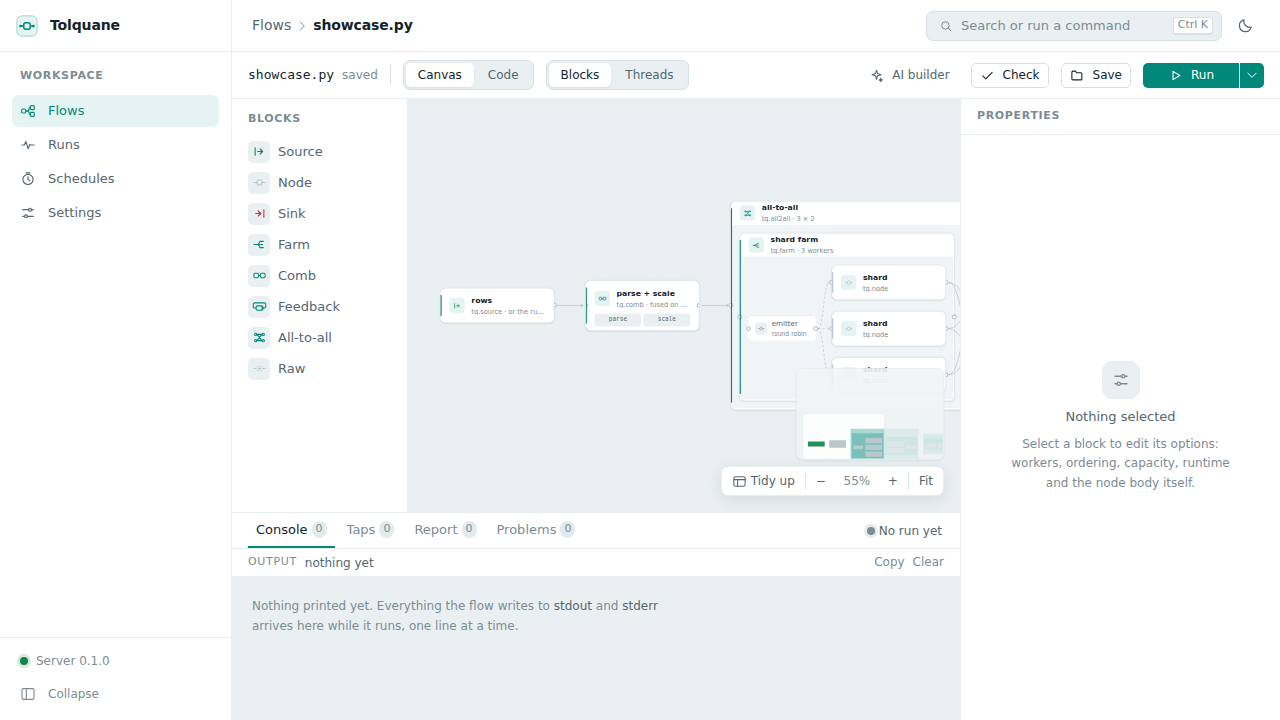

The editor

The canvas shows blocks, not threads: the things you write. A source, a node, a sink, a farm with its worker inside it, a comb, a feedback loop, an all-to-all pair, and a raw node. >> is an edge. Drag a kind from the palette on the left onto the canvas to add it, drag from one card's handle to another to connect them, and select a card and press Delete to remove it.

Blocks / Threads switches to the expanded graph — the emitters, the workers, the collectors, everything that will actually run, the same picture tq.draw prints. It is read-only: it is what the blocks become.

Tidy up lays the cards out again (a file with no saved layout is laid out automatically the first time it opens). The zoom controls and Fit are next to it.

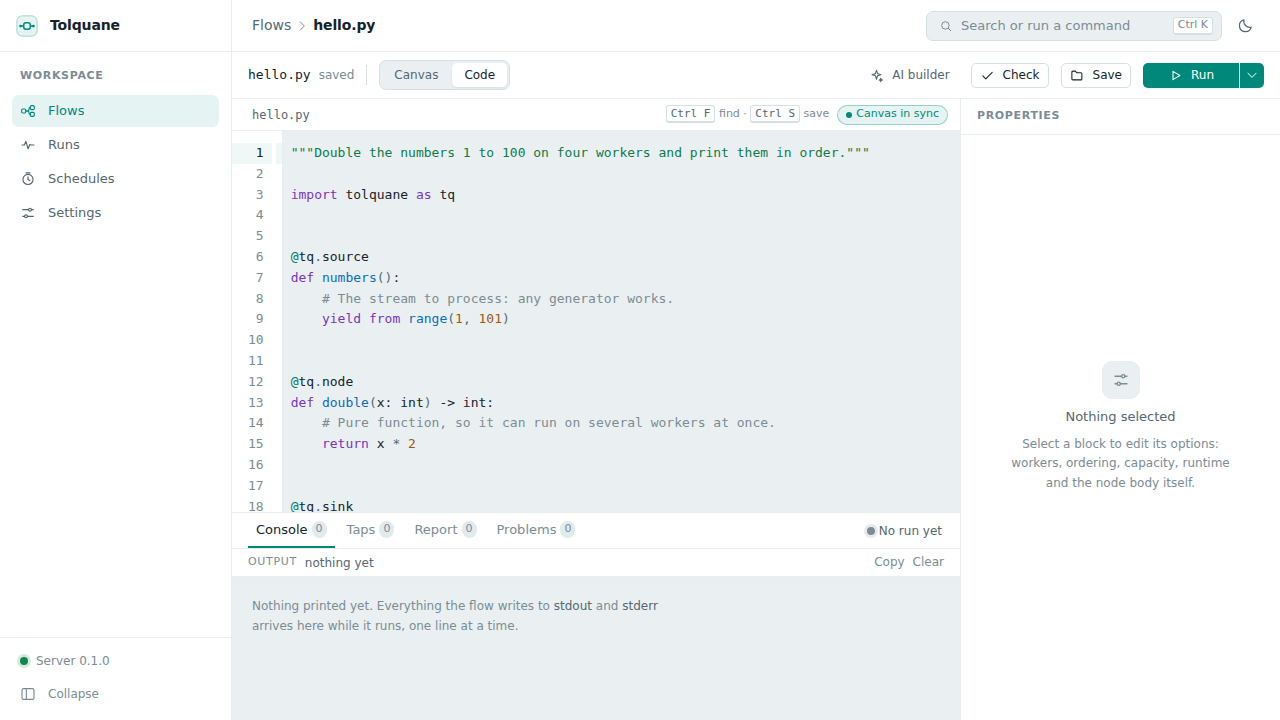

Code, and the two-way sync

Canvas / Code switches to the whole file in an editor. The two views are the same flow:

• An edit on the canvas regenerates the Python. The generated code is what the house style asks for and passes ruff, and node bodies are kept exactly as written: a round trip never reformats what you typed.
• An edit in the code re-parses about half a second after you stop typing, and the canvas catches up. The badge by the file name says Canvas in sync when it did.

Nothing is ever reverted. If the parser cannot model what you typed, the file stays exactly as it is and the panel underneath says which line stopped it; the flow drops to code-only mode until it can be modelled again.

Ctrl S (⌘S) saves. If the file changed on disk since it was opened — you edited it in another editor, or the AI builder wrote it — saving shows both versions instead of overwriting.

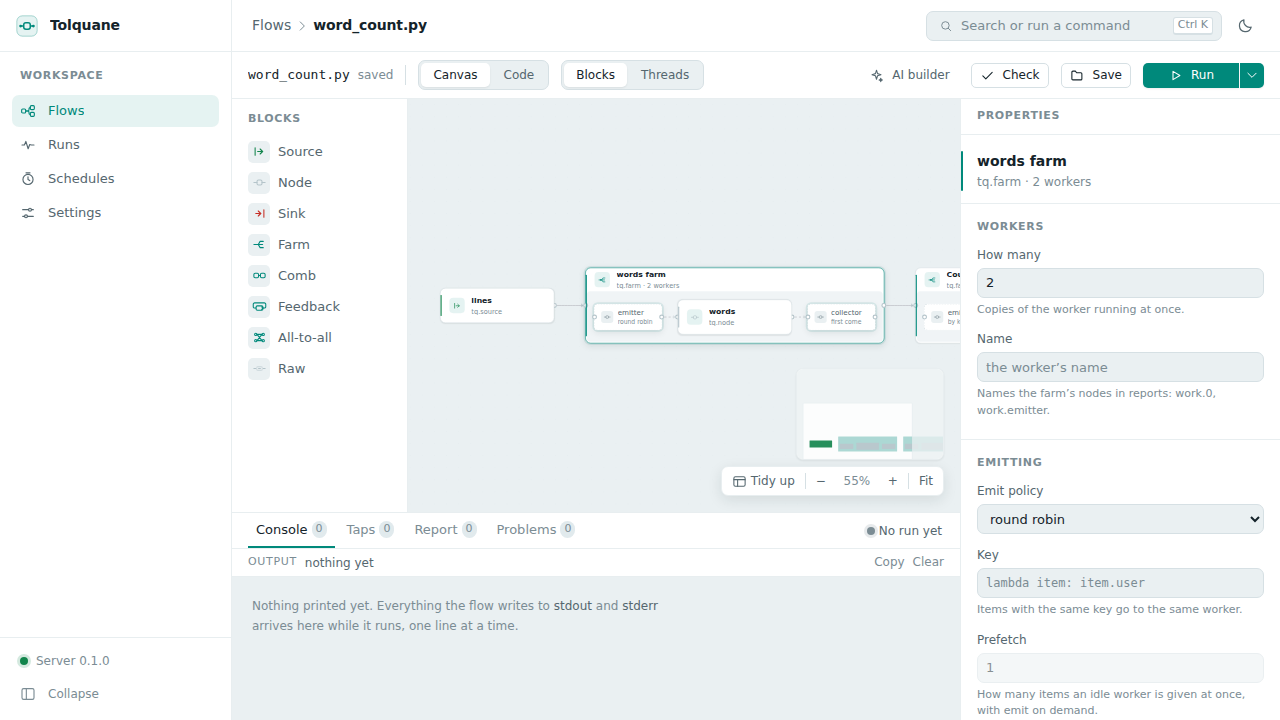

The properties panel

Select a card and the panel on the right holds every option that block has: how many workers, the emit policy (round robin, on demand, broadcast, scatter, by key) and its key, the collect policy, ordering, prefetch, capacity, the runtime for that block, its name, and custom emitter and collector ends. The node's own body is editable there too. Every change goes straight into the code.

Check

Check runs tq.check on the flow in a child process and answers with the node and edge counts, or with the GraphError as it stands — Tolquane's errors already say what to fix. A problem that belongs to one block is marked on that card and listed in the Problems tab of the drawer.

Running

Run starts the flow in a child process, never in the server, so a flow that hangs or crashes costs one process and nothing else. The arrow next to it opens the options:

• Input: the flow's own source, or one of the samples saved with the flow. Manage samples is where you add one — a list of JSON values that is fed to build(source=…) in place of the source node.
• Runtime: threads, processes or sync. Sync runs one node at a time in a fixed order, which is the one to reach for when something is wrong.
• Tap items: keep the last five items that crossed every edge, for the Taps tab.
• Chrome trace: write a trace file, downloadable from the report afterwards, that opens in Perfetto.

Ctrl ↵ (⌘↵) runs with whatever those options are set to.

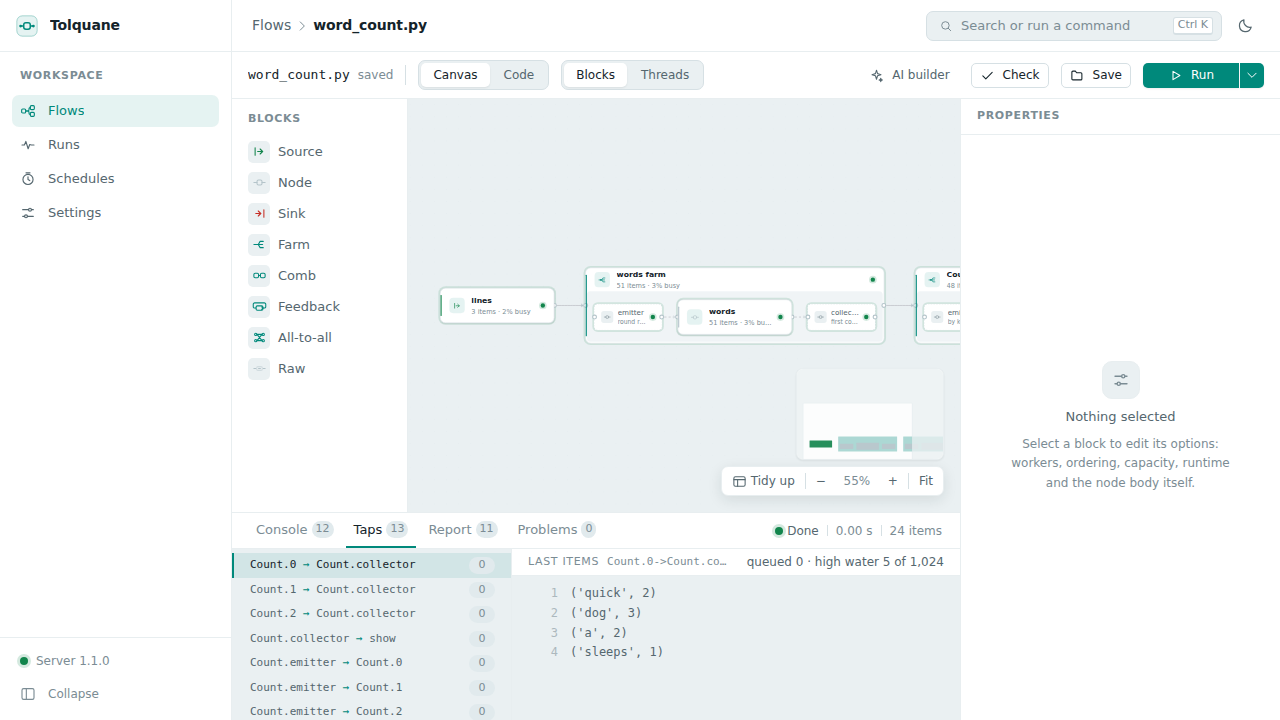

While it runs, each card carries its state colour (not started, running, waiting, done, failed), how many items it has taken and produced, and what percentage of the time it was busy; each edge carries its queue depth. Waiting is back pressure, not an error.

The drawer at the bottom has four tabs:

• Console: everything the flow printed, stdout and stderr, as it arrives.
• Taps: one row per edge, and the last items that crossed it.
• Report: the table tq.run returns — items in and out, busy and wait time per node, the busiest one marked. The trace file downloads from here.
• Problems: errors and deadlock reports, each pointing at the card it is about.

Cancel sends the run SIGTERM, and SIGKILL if it has not stopped after cancel_grace seconds.

Parameters and environment

A flow can take parameters. They are keyword-only arguments of build, after source, each with a literal default:

def build(source=None, *, factor: int = 2, label: str = "x", loud: bool = False):
    ...

The defaults are what the file does on its own, so python flow.py still runs and still needs nothing. A parameter with no default, or one whose default is not a literal, is something the canvas cannot model: the flow drops to code-only mode and says which one.

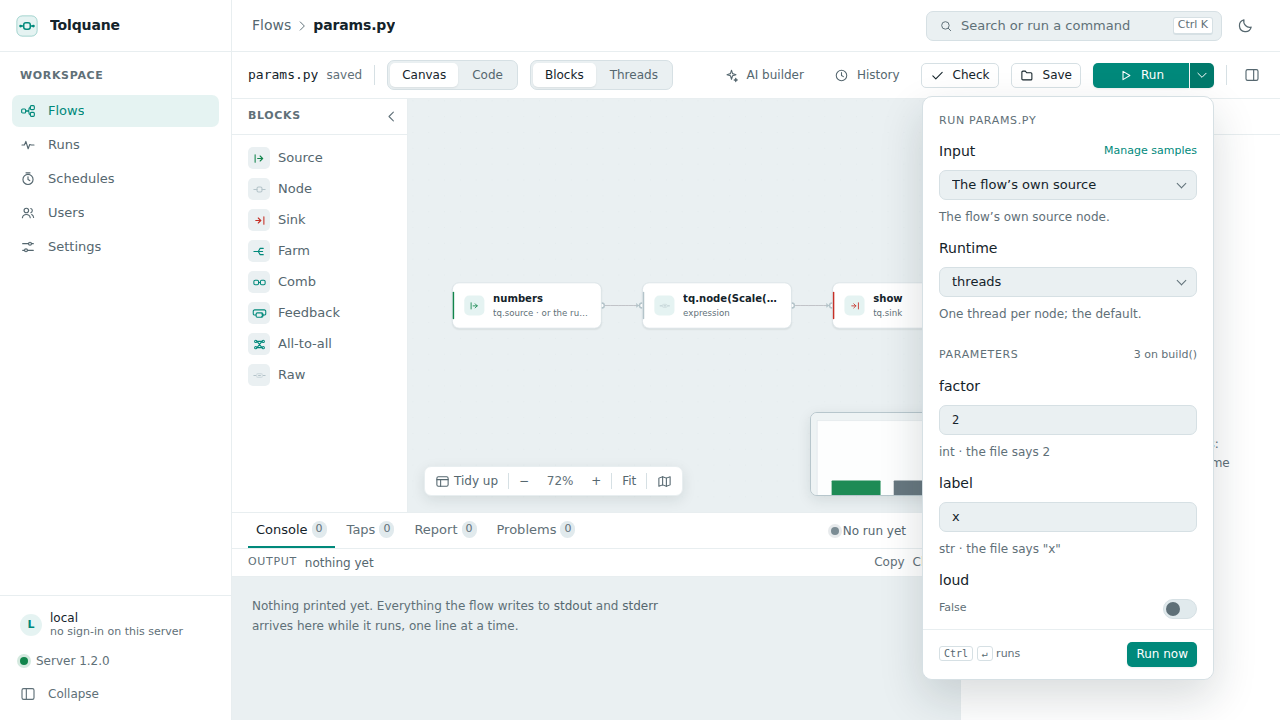

The Run popover lists them under Parameters, one field per parameter, typed from the default — a number, a toggle, a text box, or a code field for anything else — with what the file says written underneath. The values you used last are remembered per flow, in the browser. The schedule dialog has the same section and keeps its values with the schedule. Parameters are added, renamed, retyped and removed in the properties panel of the start card, which is an edit of build() like any other.

From the command line:

tolquane run flow.py --param factor=4 --param label=z
tolquane check flow.py --param factor=4

--param repeats, and works on run, check, explain and draw. The value goes through ast.literal_eval, so 4 is an integer and a plain word stays a string. A name the flow does not declare is an error that lists the ones it does.

Environment. The popover's Environment section sets variables for that one run; tolquane run flow.py --env GREETING=world does the same at the command line, and a schedule carries its own. Settings → Workspace environment is given to every run in the workspace, before the run's own variables: a key or a database URL a flow needs belongs there rather than in the file. The server's own API keys, the SMTP password and the access token are taken out of every child's environment before any of this is applied, so a flow never inherits them.

The interpreter. Settings → Interpreter is the Python that runs the flows; unset, it is the one the server itself runs on. Saving it runs it: an interpreter without Tolquane, or with a different major version, is refused with the pip install tolquane line that fixes it. A bare name is looked up on PATH, and a virtualenv that has since been deleted falls back to the server's own interpreter rather than making every run fail. Check, Explain, Draw and Optimize use it too, and the Run popover names it.

A missing import. Check also asks that interpreter to import what the file imports. Whatever it cannot import comes back in Problems as a warning with the line that fixes it — pip install opencv-python for cv2, and the same for PIL, sklearn, yaml, bs4 and dotenv. The standard library, tolquane itself and the modules sitting next to the flow are not asked about. A flow that fails to check because of the missing module gets the warning as well: it is the same problem, and the fix is the line under it.

Runs

Every run is recorded: the flow, when, how long, the runtime, the trigger (manual, a schedule, or a retry of one), who started it, the parameters and variables it was given, the status and the busiest node. Opening one shows its report and its log — the last 64 KB of what it printed — the messages it sent if it was a schedule with outcomes, and Run again, which starts the same flow on the same runtime with the same sample. The history lives in ~/.tolquane/web.db.

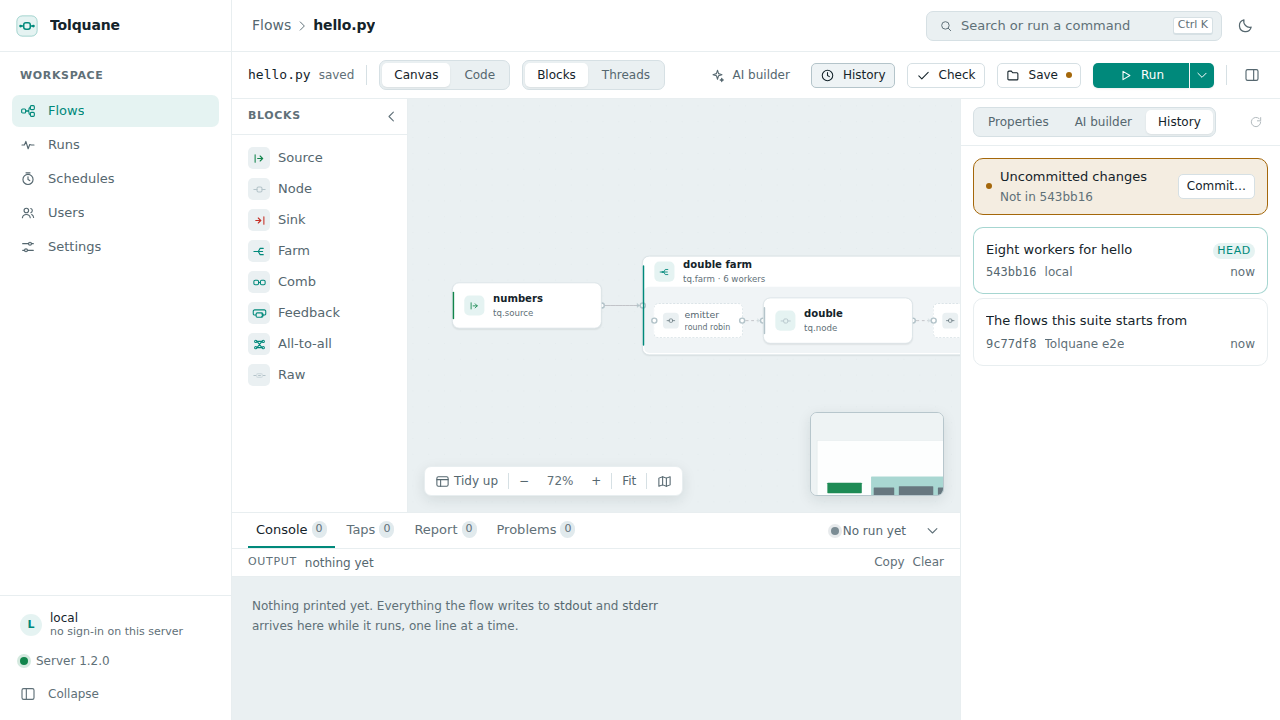

History

The versions of a flow are git's, not Tolquane's. Two things have to be true: git on the PATH, and the workspace inside a repository. When either is missing the History tab says so, in git's own words, and an administrator can press Initialize history: that runs git init in the workspace and writes a .gitignore with .tolquane-web/ and __pycache__/.

History is the third tab of the right column, beside Properties and the AI builder. It lists the commits that touched this flow — the short hash, who made it, the message, how long ago — with HEAD marked, and Uncommitted changes on top when the file differs from the last commit; the Save button carries a dot while that is true. Clicking an entry shows its diff against the file as it is now.

Restore writes that version back over the flow and its layout sidecar. It is a write, not a commit and not a checkout: the file becomes what it was, the change shows as uncommitted, and you save it, or restore HEAD again, as you like.

Ctrl Shift S (⌘⇧S) saves with a message: a small dialog, and the save commits the flow and its sidecar with what you typed. Settings → History → Commit on save does it for every save, with Edit <path> when no message was given; the toolbar says which of the two happened, and says so when there was nothing to commit. Apply in the AI panel fills the next message in for you: AI: <the first line of what you asked>.

Only the flow's own two files are ever added, by name, so a commit never sweeps up whatever else was uncommitted, and a commit is authored as you, at <name>@tolquane.local. Nothing here runs push, reset or checkout. A commit git refuses does not undo the save: the file is written, the commit is not made, and the server log says why. Asking for a commit in a workspace that is not a repository is refused before anything is written.

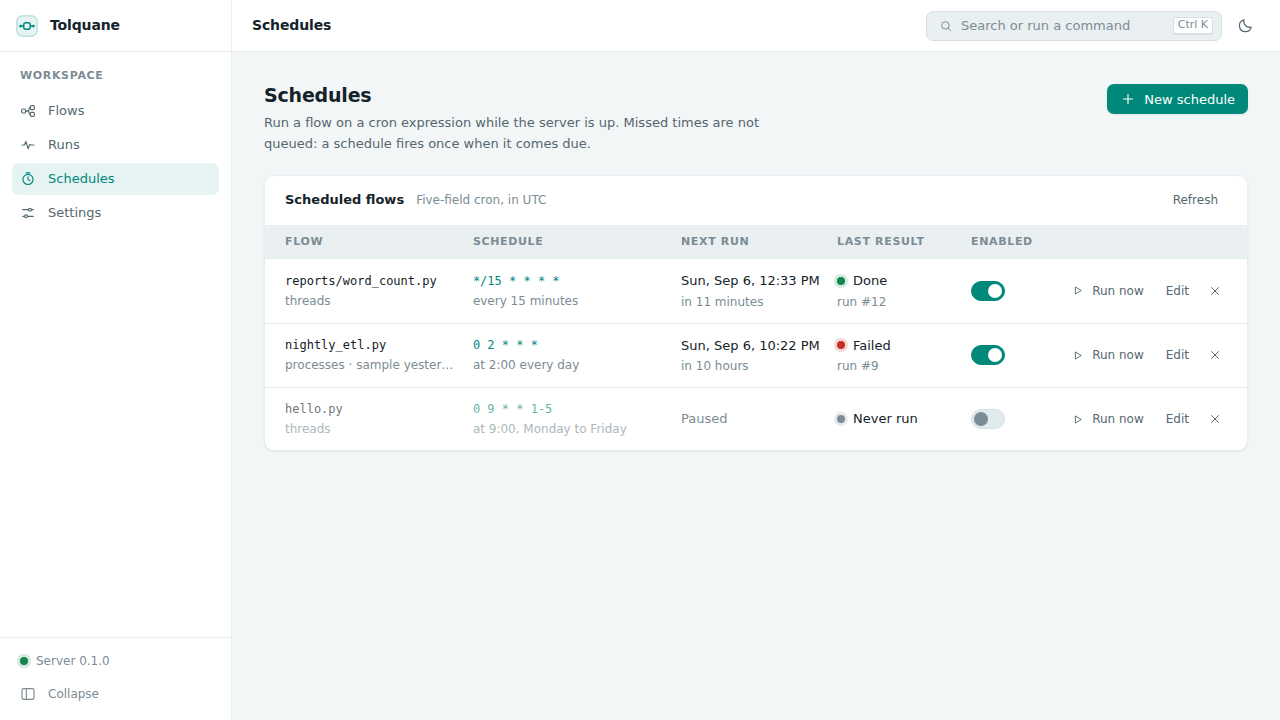

Schedules

A schedule is a flow, a five-field cron expression, an optional sample and a runtime, with the same parameters and variables a run takes and its own outcomes. The editor offers the usual shapes as presets — every few minutes, hourly, daily, weekdays, weekly, monthly — and a custom field for anything else. Whatever it comes to is shown back as a sentence with the next five times it fires, so an expression is never a guess.

Times are the machine's own zone, the one the page names next to the table, not UTC.

Schedules fire only while the server is up, and a time that passed while it was down does not queue: a schedule that missed four nights fires once, not four times. Run now fires one immediately.

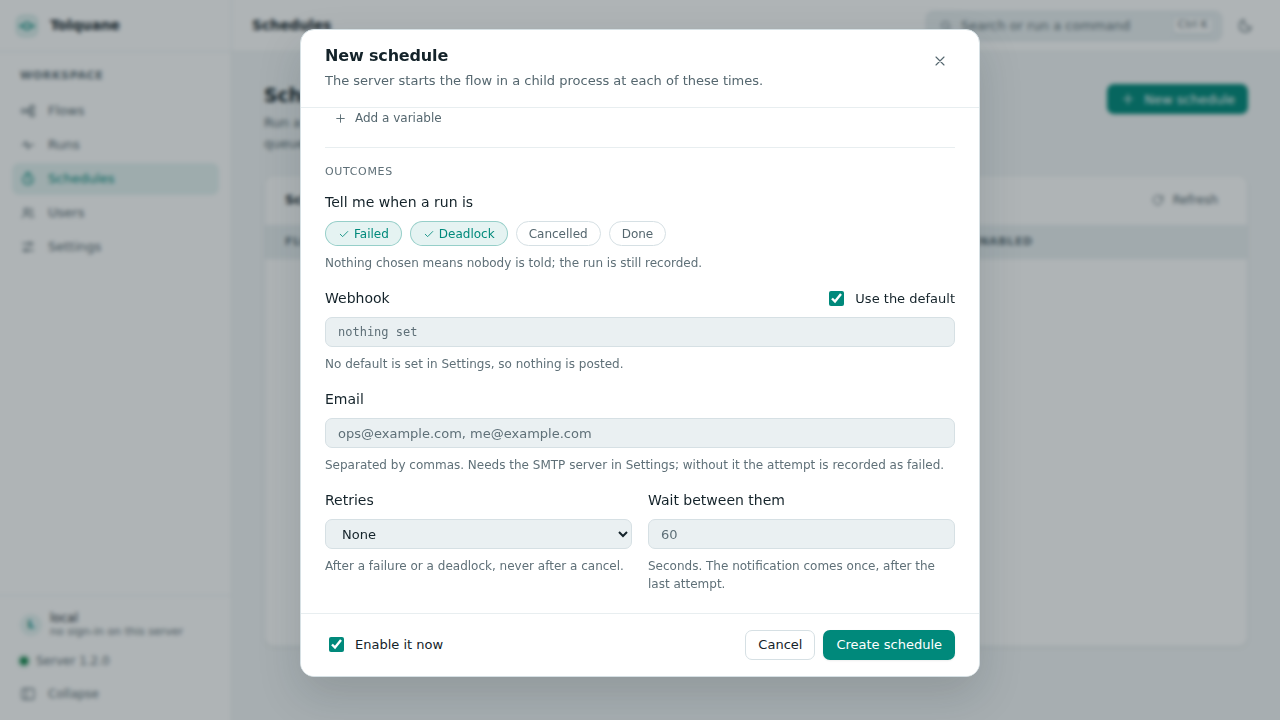

Schedule outcomes

A schedule runs when nobody is watching, so it can say how it went and try again.

Tell me when a run is picks the statuses worth a message: failed, deadlock, cancelled, done. Nothing picked means nobody is told, which is the default; the run is recorded either way.

Webhook. One POST of JSON: the event and the final status, how many attempts it took, the flow, the schedule with its cron, the run record itself, the busiest node, the error, the last 2 KB of the log, and the address of the run's page. Ten seconds to answer, and one retry thirty seconds later. A schedule with no URL of its own uses Settings → Notifications → Default webhook.

Email. Addresses separated by commas. Mail needs an SMTP server in Settings → Notifications — host, port, user, the address it comes from, STARTTLS — and without one the attempt is recorded as failed, with that as the reason. The password is not a setting: it goes to ~/.tolquane/web.toml beside the API keys, mode 600, and is never echoed back to the page. TOLQUANE_SMTP_PASSWORD in the server's environment does instead.

Retries. Zero to five, with a wait in seconds between them. A retry follows a failure or a deadlock, never a cancel. Each attempt is a run of its own on the Runs page, so the chain is there to read; the message comes once, after the last attempt, with the final status and how many there were.

Send a test delivers one message now, to every target the schedule has, describing its last run — or a placeholder, when it has never had one. It does not retry, since somebody is waiting for the answer, and it reports a line per target. A schedule with no webhook, no addresses and no default has nothing to test and says so.

The schedule list shows a bell where notifications are set, and the last outcome. Every attempt is kept and listed on the run itself: a webhook that failed and then succeeded leaves both rows. Retries and deliveries live in the running server, so a server stopped between two attempts drops what was pending.

The same flow, anywhere

Nothing Tolquane Web writes needs Tolquane Web to run:

python flow.py                       # or: tolquane run flow.py
scp flow.py server:                  # and it runs there with pip install tolquane

The file is the whole flow. build(source=None) returns the graph and main() runs it, which is what tolquane check, run, explain, draw and optimize expect of any file, and what a cron line or a CI job can call. The canvas positions and the samples are in the sidecar next to it, and a machine that ignores the sidecar loses nothing but the layout.

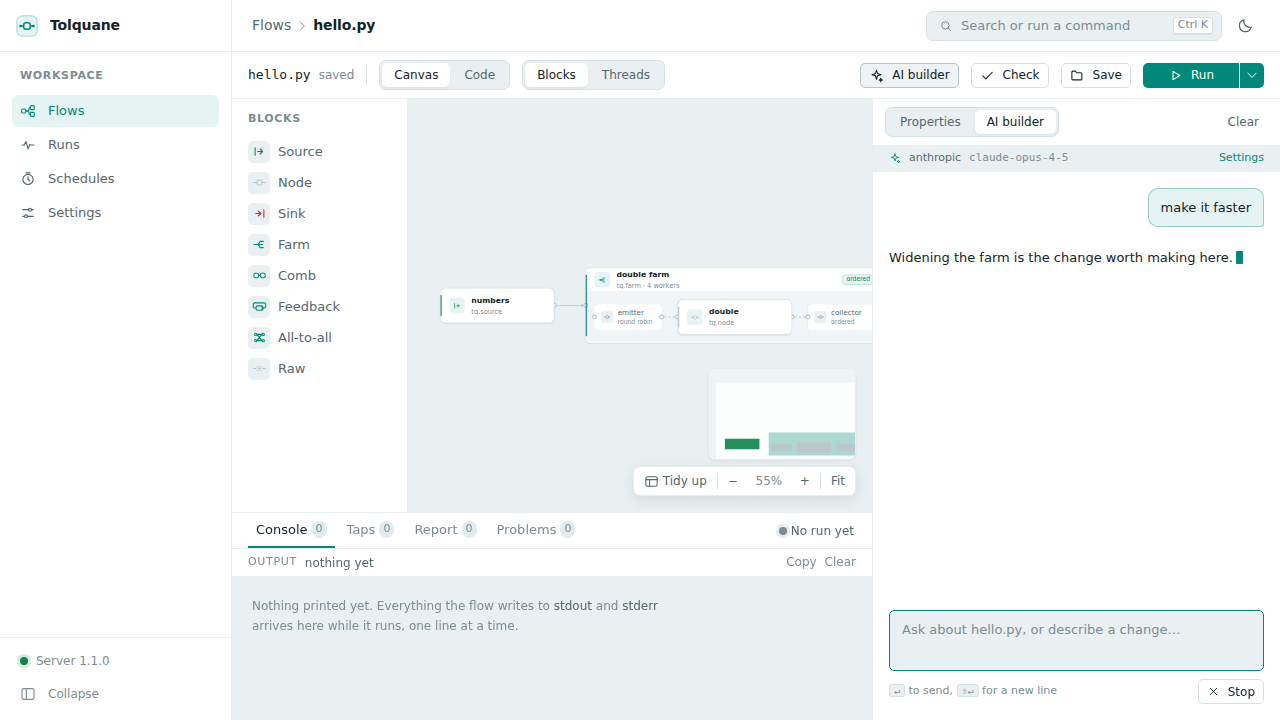

The AI builder

AI builder opens a chat beside the editor. It is the same tolquane.ai.Builder the tolquane build command uses, given the open flow and the chosen sample as context. It writes, checks and runs a flow in a scratch directory of its own — never over your open file — and streams its turns and its tool calls into the panel. When it has written something, the panel offers the diff and Apply, and the canvas updates when you take it.

The key goes in Settings → AI builder: a provider (Anthropic or OpenAI), an optional model id, and the key itself. Keys are written to ~/.tolquane/web.toml with owner-only permissions (mode 600) and never enter the database, a flow, or an answer from the server — the settings page is only ever told whether a key is stored. A key exported as ANTHROPIC_API_KEY or OPENAI_API_KEY before starting the server works too, and needs no setting at all.

Settings

Everything on the Settings page is kept in the same SQLite database as the runs (~/.tolquane/web.db), except the API keys and the SMTP password, which are not:

Setting	What it does
workspace	The directory the flows live in, for the next start
env	Variables given to every run in the workspace, before the run's own
python	The interpreter runs, checks, draws and optimizes use (the server's own)
default_runtime, default_batch	What a run uses when it does not choose
exec_timeout	How long a parse, check, draw or optimize child gets (30 s)
max_concurrent_runs	How many runs may go at once (4); beyond it a run is refused
max_source_bytes	The largest flow the server will write (2 MB)
cancel_grace	Seconds between SIGTERM and SIGKILL on cancel (10)
keep_traces_days	How long traces and samples survive in .tolquane-web/ (7)
auto_commit	Commit the flow and its sidecar on every save (off)
notifications.webhook_default	Where a schedule with no webhook of its own posts
notifications.smtp	The mail server schedule outcomes use; its password is a key
theme	Dark, light, or whatever the system says

Host, port and token are shown but not editable: they are start-up options, so changing them means restarting with --host, --port or --token. A member sees the page, but only the theme is theirs to change; the server's own section and the keys are not shown to them at all.

What is on disk

For a flow called hello.py, in the workspace:

hello.py                     the flow: the artifact, and all of it
hello.layout.json            the sidecar: card positions, the viewport, the samples
.tolquane-web/               traces, sample files and the builder's scratch

The sidecar is the canvas's own file. Positions never go into the .py, so a flow opened on a machine that has never seen Tolquane Web is laid out automatically and nothing is missing; deleting the sidecar loses the layout and the samples and nothing else. Both are worth committing — the sidecar is small, and its samples are the inputs your flow is tested with.

.tolquane-web/ is Tolquane Web's own directory and is not worth committing. Traces and samples in it are cleared at startup once they are older than keep_traces_days.

Runs, schedules, settings, accounts, sessions and the record of what was notified are in ~/.tolquane/web.db. Passwords are scrypt hashes with a salt each, and a session or API token is kept only as its SHA-256: neither is ever there as text. The API keys and the SMTP password are in ~/.tolquane/web.toml, mode 600, and nowhere else.

Keyboard shortcuts

Key	Does
Ctrl K / ⌘K	The command palette: every action, by name
Ctrl S / ⌘S	Save the open flow
Ctrl Shift S / ⌘⇧S	Save with a commit message
Ctrl ↵ / ⌘↵	Run the open flow
Ctrl Z / ⌘Z, Ctrl Shift Z or Ctrl Y	Undo and redo on the canvas
Ctrl F / ⌘F	Find, in the code view
Delete	Remove the selected card
↵ / Shift ↵	Send, and a new line, in the AI panel
Esc	Close the palette or a dialog

Troubleshooting

The port is in use. tolquane web --port 8899, or stop whatever holds 8765. Another Tolquane Web is the usual answer; they share the same database, so two of them on one machine is one too many.

"The Tolquane server is not reachable". The banner across the top means the page is still there but the server is not answering; it retries every five seconds. Start it again with tolquane web in the workspace and the banner goes on its own. Nothing typed is lost, but nothing can be saved until it is back.

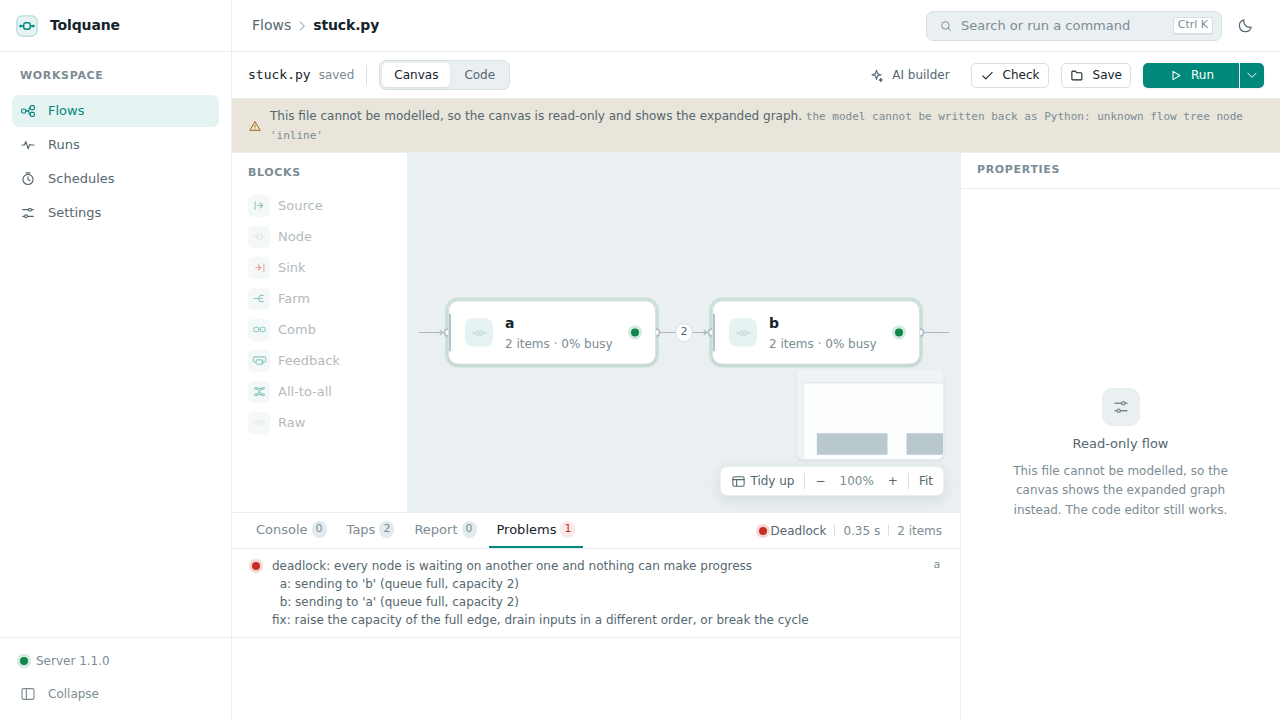

A flow opens read-only, saying it cannot be modelled. That is code-only mode. The file is fine — it is Python the canvas cannot represent, usually a graph built at run time, a Graph.link topology, or a build() that does more than compose blocks. The code editor, Check, Run and the whole drawer work as usual; the canvas shows the expanded graph read-only instead of the blocks. The banner names what stopped the parser. To get the canvas back, move the part it cannot read into a node body, or let the AI builder rewrite the file in the house style.

A flow hangs. It will not hang for ever: Tolquane's watchdog notices that every node is waiting on another one and ends the run with a deadlock report, which arrives in the Problems tab naming the nodes, what each was waiting for, and the fix — usually a capacity to raise or a cycle to break. Cancel stops a run that is merely slow. A run whose child ignores both SIGTERM and SIGKILL is recorded as failed rather than left saying "running" for ever.

Every request answers 401 on a server started with --token. The token in the browser is missing or wrong. Set it again — localStorage.setItem('tolquane.token', '…') in the developer console, then reload — or restart the server without --token if it is only ever reached from this machine. On a server with accounts, a 401 means the session has gone instead: the page sends you to the sign-in form and back to where you were.

Nobody can sign in. Passwords are set from the command line as well as from the page, and no server has to be running: tolquane web users passwd alice, or tolquane web users add alice --admin if there is no administrator left. tolquane web users list says who there is.

A run is refused with "429". max_concurrent_runs runs are already going. Wait, cancel one, or raise the limit in Settings.

The page loads but nothing works, and the browser console says something about the Content Security Policy. The policy the server sends allows the app's own scripts and styles and nothing else; a browser extension injecting into the page is the usual cause. See below.

Security

Tolquane Web runs flows: it is a program that executes code you give it, with your privileges. What it does about that:

• Loopback by default. With no --host, only this machine can reach it, and with no accounts either, no login is needed. --host anything else is refused unless --token is given.
• One token, everywhere. With a token set, every route under /api, the run WebSocket and the AI event stream need it — as Authorization: Bearer <token>, or as ?token= on the socket and on a download link, neither of which can set a header. Tokens are compared with hmac.compare_digest, and never written to a log: a URL that carries one is logged with token=<hidden>. The static files are served without it, since the page is what asks you for the token. Paste it once and the browser keeps it.
• Accounts, when you want them. One user made and every request needs a session or an API token, on loopback too. Passwords are hashlib.scrypt hashes, a salt each, never text; a session token is secrets.token_urlsafe(32) kept as its SHA-256, and expires thirty days after it was last used; an API token is the same without the expiry. Disabling a user ends their sessions at once, deleting one takes them with it, and a password change leaves the open sessions alone — it is made from one of them.
• Roles, not only a door. Settings, the keys, the users and git init belong to an administrator; a member has the flows, the runs, the schedules, the AI panel and the history. Which routes need which is a table in the server rather than a check written out route by route, and a route a role does not have answers 403.
• The workspace is a fence. Every path a request names is resolved inside the workspace, whether it is being read, written, renamed or created. .., an absolute path, a Windows drive or share, and a symlink whose target is outside are all refused, and so is a layout sidecar that points away. The listing skips what it would refuse to open.
• No secrets in a child. A flow runs in a child process whose environment has had ANTHROPIC_API_KEY, OPENAI_API_KEY, TOLQUANE_SMTP_PASSWORD and the access token taken out of it, and so do the children that parse, check, draw and optimize. The workspace environment and the run's own variables are applied after that, so a flow gets what you gave it and nothing the server keeps. The AI builder is the one thing that needs a key, and it is handed one directly.
• Bounded. At most max_concurrent_runs runs at once; a source over max_source_bytes is refused with 413; a run's events are kept to a bounded number in memory, so a flow printing a million lines costs the server nothing (the socket says how many events it could not keep, and the log and the report are still whole).
• Same origin, no CORS. No Access-Control-Allow-Origin header is ever sent, so a page on another site cannot read an answer out of this server even from your own browser. The app's own page comes with X-Content-Type-Options: nosniff and a Content Security Policy that allows scripts from this server only (the one inline script the built page carries is allowed by its hash), connections to this server and its WebSocket, and nothing else. Styles are the single exception: style-src allows 'unsafe-inline', because the code editor and the canvas write their own stylesheets into the page as they load.

What it is not: there is no HTTPS. Passwords, session tokens and everything else go over plain HTTP, so on a shared machine put the server behind an SSH tunnel (ssh -L 8765:127.0.0.1:8765 host) and leave it on loopback, which is better than a password on the wire. Accounts say who may do what on one server; they are not a fence between people's files. Everybody who signs in shares the one workspace, and a member can run a flow, which is running code on that machine as the user who started the server.
